ASTM / ASME B 366 Alloy 20 Foundation Port Connector, Alloy 20 Instrumentation Connector Elbow , Alloy 20 Hex Plug Leading Manufacturers.

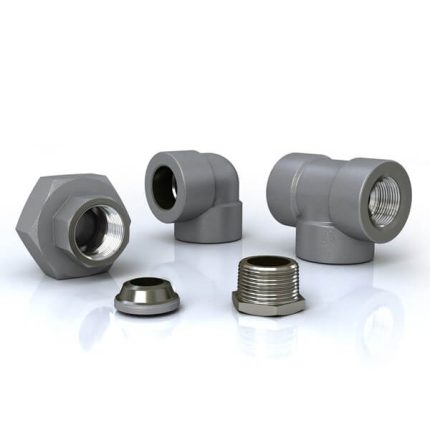

UNS N08020 Female Connector, Alloy 20 Pipe End Closure, Alloy 20 Male Run Tee, Alloy 20 Ferrule Set Suppliers.
DIN 2.4660 Alloy 20 Instrumentation Fittings, ASTM B366 Alloy 20 Compression Tube Fittings, Alloy 20 Flared Pipe Fittings, Alloy 20/k500 Tube Fittings Exporter.
Meanwhile, because of its high nickel content, there is some disagreement whether these Carpenter 20 Instrumentation Fittings is a nickel or a stainless steel alloy. As a manufacturer, supplier, stockiest and exporter, we offer these UNS N08020 Instrumentation Tubing & Fittings in custom-made sizes and thicknesses as per the exact demands of our esteemed clients.
Alloy 20 Instrumentation Tubing & Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
ASTM B366 Alloy 20 Instrumentation Fittings Specification
Dimensions : DIN, ASTM, ASME, BS and all International Standards
Specifications : ASTM B366 / ASME SB 366
Grade : Alloy 20 – UNS N08020 )
Size Range : 1/8” to 2” and 2mm to 32mm tube diameter
Working Pressure : up to 6,000psi (based on severity of application)
Available Thread : NPT(ANSI B1.20.1), and ISO thread configurations (BSPT, BSPP)
Alloy 20 Instrumentation Tube Fittings Chemical Composition
| Element | Alloy 20 |
| Ni | 32 – 38 |
| Fe | Bal |
| C | 0.02 max |
| Mn | 1 – 2 |
| Si | 0.7 max |
| Cu | 3 – 4 |
| Cr | 19 – 21 |
| Mo | 2 – 3 |
| S | 0.005 max |
| P | 0.02 max |
| Nb | 0.1 – 0.3 |
Alloy 20 Instrumentation Fittings Physical & Mechanical Properties
| Element | Alloy 20 |
| Density | 8.1 g/cm3 |
| Melting Point | 1443 °C (2430 °F) |
| Tensile Strength | Psi -80,000, MPa -551 |
| Yield Strength (0.2%Offset) | Psi – 35,000, MPa – 241 |
| Elongation | 30 % |
