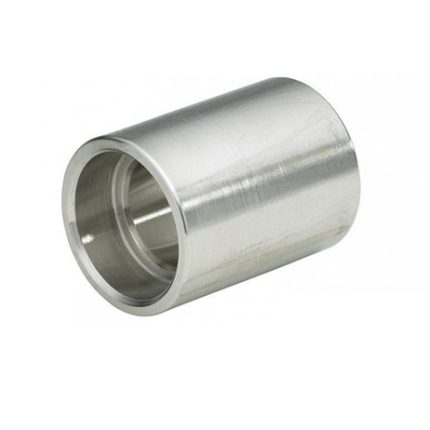

NSI/ASME B16.11 Alloy 20 Socket Weld Cap, Alloy 20 Socket Weld Reducing Insert, Alloy 20 Forged Socket Weld Full Couplings Leading Manufacturers.

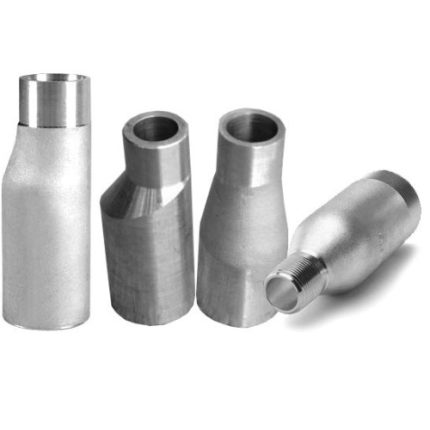

DIN 2.4660 Alloy 20 Nipple (pipe, barrel, swage), Alloy 20 Plug, UNS N08020 Bushing, ASTM / ASME SB 564 Alloy 20 Forged Socket weld & Threaded Fittings Suppliers.
ASTM B 564 MSS SP-79 Alloy 20 Socket Weld Elbow, Alloy 20 Forged Socket Weld Tee, Alloy 20 Socket Weld Boss, Alloy 20 Socket Weld Union Exporter.
With respect to national and international quality of raw materials, we also offer these Carpenter 20 Forged Socket Weld Pipe Fittings in customized sizes and thicknesses as per specific demands by our esteemed clients at market leading prices.
ASTM / ASME SB 564 Alloy 20 Forged Socket weld Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
ANSI B16.11 Alloy 20 Socket weld Pipe Fittings Specification
Dimensions : ASTM, ASME, ANSI 16.11, MSS SP-79,83,95,97,BS 3799
Specifications : ASTM B564 / ASME SB564
Grade : Alloy 20 – UNS N08020
Size : 1/2″NB TO 4″NB IN
Range : 15 NB TO 100 NB
Class : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc.
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings
Alloy 20 Forged Socket weld Pipe Fittings Chemical Composition
| Element | Alloy 20 |
| Ni | 32 – 38 |
| Fe | Bal |
| C | 0.02 max |
| Mn | 1 – 2 |
| Si | 0.7 max |
| Cu | 3 – 4 |
| Cr | 19 – 21 |
| Mo | 2 – 3 |
| S | 0.005 max |
| P | 0.02 max |
| Nb | 0.1 – 0.3 |
Alloy 20 Socket weld Pipe Fittings Physical & Mechanical Properties
| Element | Alloy 20 |
| Density | 8.1 g/cm3 |
| Melting Point | 1443 °C (2430 °F) |
| Tensile Strength | Psi -80,000, MPa -551 |
| Yield Strength (0.2%Offset) | Psi – 35,000, MPa – 241 |
| Elongation | 30 % |
